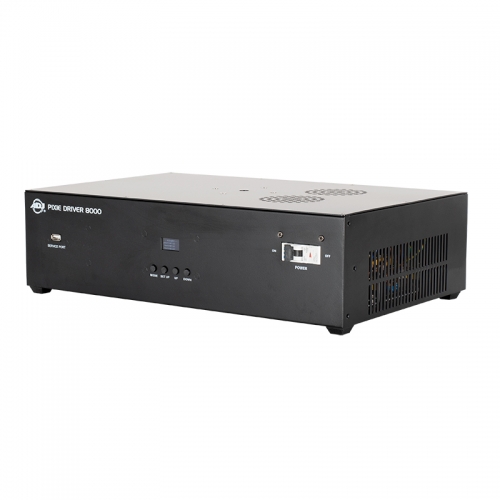

Pixie Driver 8000
Pixie Driver 8000 is designed specifically for the ADJ Pixie Strip 30, Pixie Strip 60, and Pixie Strip 120. It provides easy and versatile control options including simple on-board manual dimming and strobe control, plus full pixel mapping control of 8,160 max pixels via Kling-Net, 1,360 max pixels via Art-Net or sACN (streaming ACN) protocols.
The Pixie Driver 8000 features a universal auto switching power supply (100-240V), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, (8) Pixie Strip outputs which use proprietary, 4-pin combo cables (sold separately) that supply power and data to each pixie strip (available in lengths from 30cm to 15m (For additional details, see Accessories Sold Separately under the Specifications section). The Pixie Driver 8000 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).
€ 1399,00 (€ 1156,20 ex)
Op voorraad
Pixie Driver 8000
Productnummer: 1226200067
Pixie Driver 8000 is designed specifically for the ADJ Pixie Strip 30, Pixie Strip 60, and Pixie Strip 120. It provides easy and versatile control options including simple on-board manual dimming and strobe control, plus full pixel mapping control of 8,160 max pixels via Kling-Net, 1,360 max pixels via Art-Net or sACN (streaming ACN) protocols. The Pixie Driver 8000 features a universal auto switching power supply (100-240V), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, (8) Pixie Strip outputs which use proprietary, 4-pin combo cables (sold separately) that supply power and data to each pixie strip (available in lengths from 30cm to 15m (For additional details, see Accessories Sold Separately under the Specifications section). The Pixie Driver 8000 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).
Specifications Control Features: • Power / data supply for ADJ Pixie Strip 30, Pixie Strip 60, and Pixie Strip 120 • Manual RGB mode • Internal programs • Manual Dimming and Strobe Control • Full Pixel Mapping Control • Drives up to 8,160 Pixels via KlingNet (1,020 Pixels per port) • Drives up to 1,360 Pixels via Art-Net and sACN (170 Pixels per port) • OLED screen with 4-button menu • USB port for Firmware Updates Control Quantity: • KlingNet: (34) Pixie Strip 30's, (17) Pixie Strip 60's or (8) Pixie Strip 120's (Per port. Or any combination not exceeding 1,020 pixel per port) • ArtNet: (5) Pixie Strip 30's, (2) Pixie Strip 60's or (1) Pixie Strip 120 (Per port. Or any combination not exceeding 170 pixel per port) • sACN: (5) Pixie Strip 30's, (2) Pixie Strip 60's or (1) Pixie Strip 120 (Per port. Or any combination not exceeding 170 pixel per port) Connections: • Locking Power Input • Two KlingNet / Artnet ethernet ports • Eight 4-pin DC24V power/data outputs to Pixie Strips Mounting Options: • Bolt to add a clamp to hang from truss (clamp and truss not included) • Includes 19-inch rack mount ears • Safety eye Electrical: • Multi-voltage operation: AC 100-240V, 50/60Hz • Power Consumption: 1,600W max • -20°C to 45°C Dimensions / Weight: • Dimensions (LxWxH): 294x480x120mm • Weight: 6.5 kg. Approvals: CE | cETLus (Pending) Included Accessories: (1) PSLC10: 3m, 4-pin cable. Connects between Pixie Driver 8000 and Pixie Strip. (1) Power Input cable (2) 19 Rack Ears Accessories Sold Separately: PSLC1: 30cm Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable PSLC3: 1m Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable PSLC5: 1,5m Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable PSLC10: 3m Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable PSLC15: 5m Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable PSLC25: 8m Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable PSLC50: 15m Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable Specifications subject to change without notice.
