Duratruss LED Frame 3 voor LED schermen van 8 x 6 meter

DuraTruss LED Frame 3 for screens 8x6m

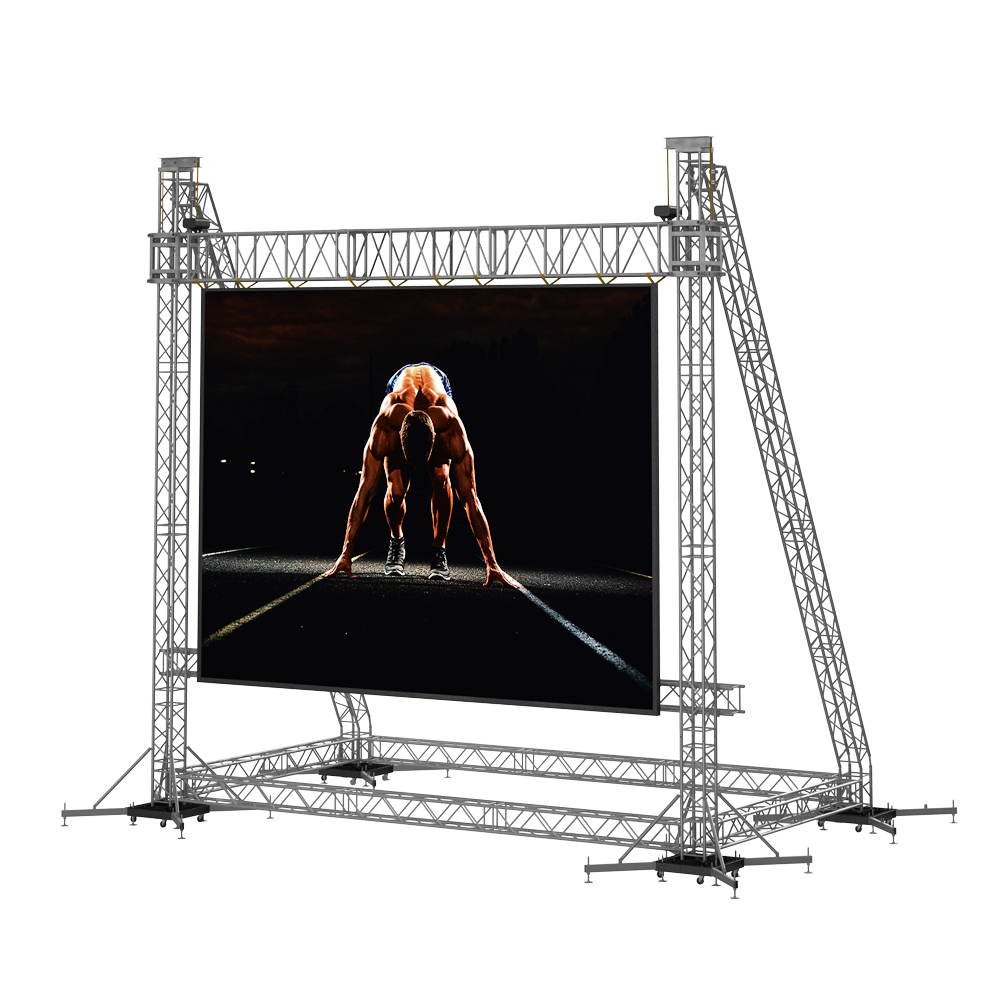

The DT LED Frame 3 is an easy and fast assembly system that can equip LED screens of 8x6m with a maximum weight of 3000 kg. The LED frame is build up from DT44 and DT74 trussing segments and the max.lifting height is 8,6m.
4x 1733000017 DT 44 Steel Base 2x 1749000015 DT 44 Sleeve Block for DT54/DT74 2x 1733000016 DT 44 Top Section 2 16x 1733000041 DT 44 Long outrigger 12x 1733000009 DT Hinge Section 4x Special DT Hinge U Part 4x Special DT Hinge U Part Left 4x Special DT P15 Steel Connect 169,5 8x Special DT Steel Pin for Hinge Section 8x Special DT Safety Clip 2x 1724200043 DT 44/4-100 4x 1724200079 DT 44/4-250 2x 1724200045 DT 44/4-300 2x 1733000069 DT Safety Hook 2 1x 1797400005 DT 74/4-250 2x 1797400006 DT 74/4-300 4x Special DT 44/2-T42 4-way corner 8x 1724100024 DT 44/2 - 200 6x 1724100025 DT 44/2 - 250 2x Special DT 44/2 - 259 6x 1724100026 DT 44/2 - 300 2x 1733000097 DT 44/2-088,6 CON 16x 1741000028 DT PRO Swivel Clamp
Not included are the chain hoists, cables and electric hoists' controller. Please ask our sales team for further informations about Stagemaker hoists.
